Details
Specifications

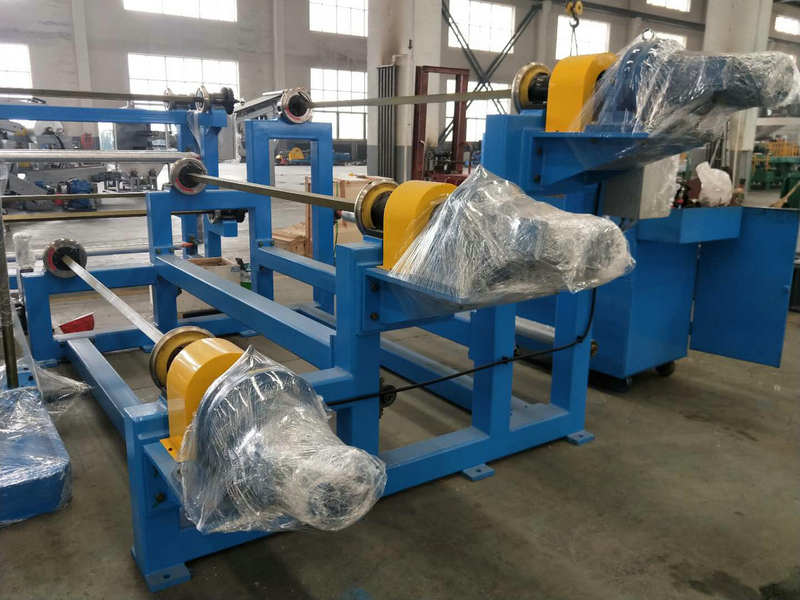

Product packaging
| DLG700×1400-1800 | DLG1100×2000 | DLG1500×2000-2500 | DLG2000×2500-4200 |
Max. product width | mm | 1200-1600 | 2000 | 2000-2500 | 2500-4200 |
Max. product thickness | mm | 5 | 8 | 12 | 12 |
Drum dia. | mm | 700 | 1100 | 1500 | 2000 |
Drum working width | mm | 1400-1800 | 2200 | 2350-2750 | 2750-4200 |
Total pulling force of steel belt | T | 38-49 | 90 | 93.6-117 | 120-144 |
linear speed of vulcanizing drum | r/min | 1.12-0.04 | 0.06-1.8 | 0.175-3.14 | 0.24-4.7 |
Steam pressure | MPa | 0.6 | ≤0.8 | ≤1 | ≤1 |
Vulcanizing temperature | °C | 1140-160 | 140-160 | 160-180 | 160-180 |
Main motor power | KW | 5.5 | 7.5 | 7.5-11 | 1530 |
Overall dimensions | L | mm | 8300 | 10000 | 1350 | 18600 |
W | mm | 4400-4830 | 4900 | 5200 | 4650-6200 |
H | mm | 2100 | 2600 | 6085 | 6285 |
About weight | T | 20-30 | 42 | 79 | 80-126 |
{}
